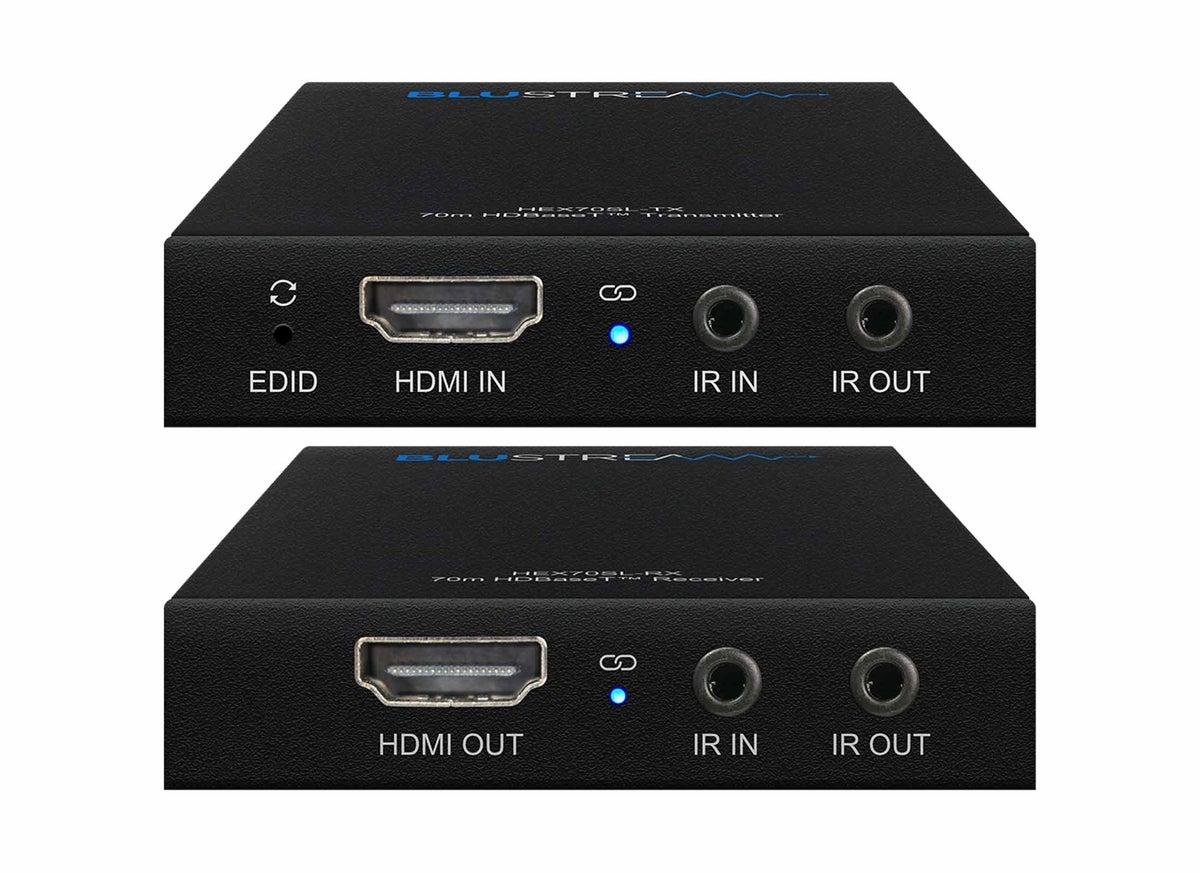

Blustream HEX70SL-KIT

Hdmi-Cat extender kit on ratkaisu tilanteisiin, joissa täytyy siirtää kuvaa pitempiä matkoja.

Features

• 1080p up to 70m
• 4K up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all standard resolutions including VGA-WUXGA and 480i-4K
• Supports all popular HDMI audio formats
• Transmits infrared signals bidirectionally
• PoC / PoH (Power over Cable / Power over HDBaseT transfers power from one device to another)
• HDCP2.2
• EDID management

Technical Data

HEX70SL-TX Transmitter

• Video input connectors: 1 x HDMI type A, 19-pin, female
• Video output connectors: 1 x HDBaseT™ RJ45 connector
• IR input connectors: 1 x 3.5 mm stereo jack
• IR output connectors: 1 x 3.5mm mono jack
• EDID: pinhole button
• Power supply: 12V/1A DC
• Dimensions (WxDxH): 106 x 73 x 16 mm
• Weight: 0.4 kg

HEX70SL-RX Receiver

• Video input connectors: 1 x HDBaseT™ RJ45 connector.
• Video output connectors: 1 x HDMI type A 19-pin female connector
• IR input connectors: 1 x 3.5 mm stereo jack
• IR output connectors: 1 x 3.5mm mono jack
• Power supply: 12V/1A DC
• Dimensions (WxDxH): 106 x 73 x 16 mm
• Weight: 0.4 kg

Scope of Delivery

• 1x HEX70SL-TX Transmitter
• 1x HEX70SL-RX receiver
• 1x 12V/1A DC power supply
• 1x Infrared Transmitter
• 1x Infrared Receiver
• 2x Mounting kit
